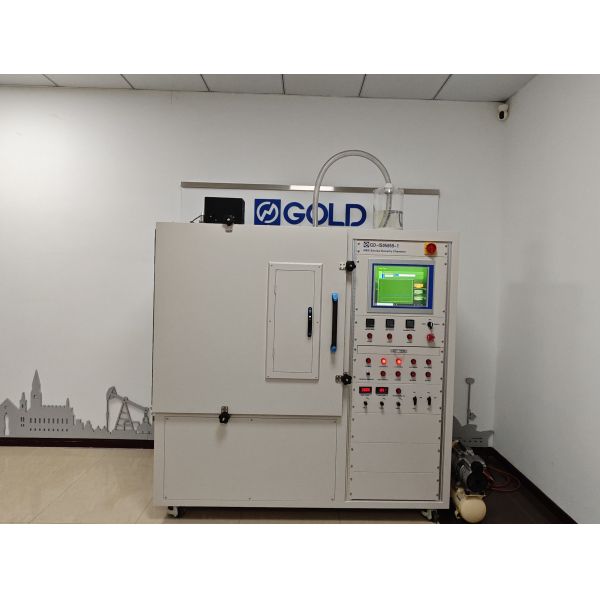

Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber

Name: Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Brand: GOLD
Price: 4000 USD

Quality Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber for sale

MOQ : 1 set

Place of Origin : China

Standard : ISO 5659-2; ASTM E662; NES 711

Packaging Details : Plywood case

Product : NBS Smoke Density Chamber

Radiant furnace : ASTM E662, provides a thermal radiation output of 25KW/M2

Exhaust : 50 l/s

Power : 220 V AC, 60 Hz, 15 A

Price : USD 4000-5000/set

Radiation cone : ISO5659-2, provides a thermal radiation output of 50KW/M2

Utilities : Compressed Air, Propane Gas, Personal Computer, Dust Collector

Supply Ability : 5 sets per months

Certification : ISO

Delivery Time : 30 days

Payment Terms : L/C,D/A,D/P,T/T,,MoneyGram

Application : Smoke Density Test Apparatus For Plastic

Model Number : GD-ISO 5659

Brand Name : GOLD

Contact Now

Lab Fire Test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber

The NBS Smoke Density Chamber measures optical density of smoke generated from test samples when exposed to heat sources or fire in a controlled chamber environment. This precision instrument supports various international standards including ASTM E662, ISO 5659, and BS6401.

Product Introduction

The Smoke Density Chamber evaluates optical density of smoke produced from test samples of specific thickness when exposed to radiant heat sources (25KW/m² using ASTM E662 furnace) or direct flame. The ISO 5659 NBS Smoke Density Test Apparatus for plastics complies with multiple international standards and features adjustable heating conditions from 10KW/m² to 70kW/m² to meet diverse testing requirements.

Compliance Standards

ASTM E 662: Standard Test Method for Specific Optical Density of Smoke Generated by Solid Materials
BSI 6401: British Standard Method for Measurement of Specific Optical Density of Smoke Generated by Materials
ISO 5659-2: Plastics-Smoke Generation - Determination of Optical Density by Single-Chamber Test
NES 711: Determination of the Smoke Index of Products of Combustion from Small Specimens of Material

Technical Specifications

Product Name	ISO 5659 NBS Smoke Density Test For Plastic
Dimensions	1,600mm (W) × 820mm (D) × 2,150mm (H)
Power Requirements	220 V AC, 60 Hz, 15 A
Weight	350 kg
Documentation	Manual Supplied
Exhaust Capacity	50 l/s
Required Utilities	Compressed Air, Propane Gas, Personal Computer, Dust Collector

Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber

Key Features

Integrated body with 19" analysis rack for space efficiency
17" touch screen panel PC for complete control and automated testing
Air cylinder movement system for sample loading and automatic vent operation
Chemical-resistant coating for easy cleaning and durability
Single-action chamber door locking mechanism
High-accuracy transmission rate and smoke density indication
Chamber preheat system for enhanced testing precision
Safety blow-out panel system for pressure protection
Heated ports, filters, and lines for toxic gas measurement
Precision manometer with MFC and DPT for automatic leakage testing
Portable water cooling system eliminating need for plumbing
High-accuracy load cell for mass loss rate measurement
SB 2005 DAQ Program for touch screen panel PC control

Support Services

Technical consulting support
Sample testing assistance
Factory visiting arrangements
Comprehensive training programs
Professional installation support
24/7 customer service availability
